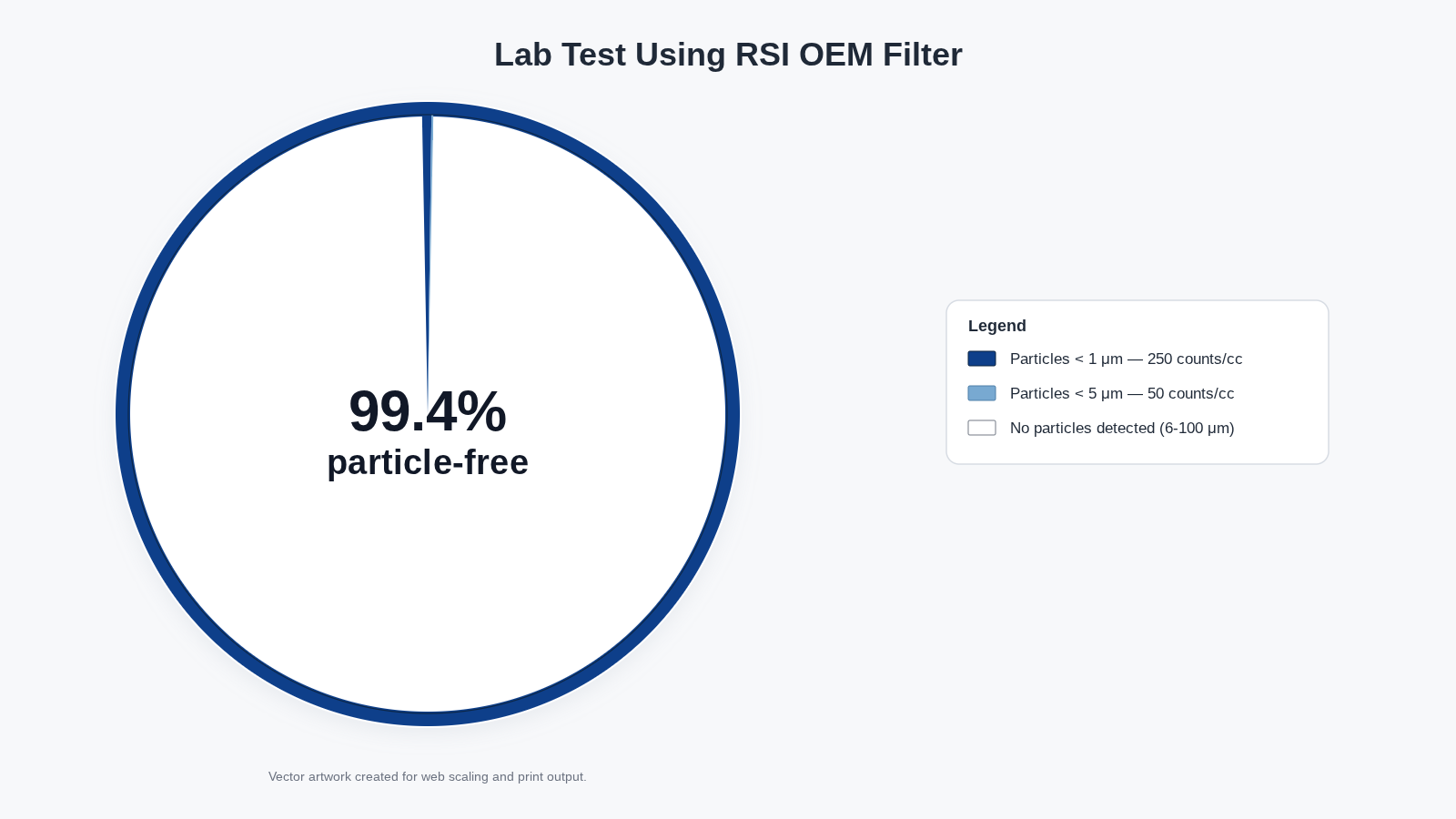

Particles responsible for fouling of heat transfer surfaces are smaller than 10 microns. RSI's high efficiency filters remove these extremely fine particles to provide the true benefits of clean cooling water.
RSI High Efficiency Filter (HEF) - Make Your Life Easier™
Why - Cooling Tower Filtration Should Be Simple
Cooling tower and condenser water systems accumulate dirt and debris that reduce efficiency and increase maintenance. Many filtration systems require complicated backwash systems, floor drains, and frequent operator attention.
Years ago RSI set out to find a simple, quality, effective pump and filter mounted on a self-contained skid. When we could not find one, we designed our own.
HOW - RSI HEF Makes Filtration Simple
- Premium GRUNDFOS pump - the only major moving component
- EATON stainless steel bag filter housing
- No backwash required
- No floor drain required
- Simple two-pipe installation
- Building automation outputs available
WHAT - RSI High Efficiency Filter

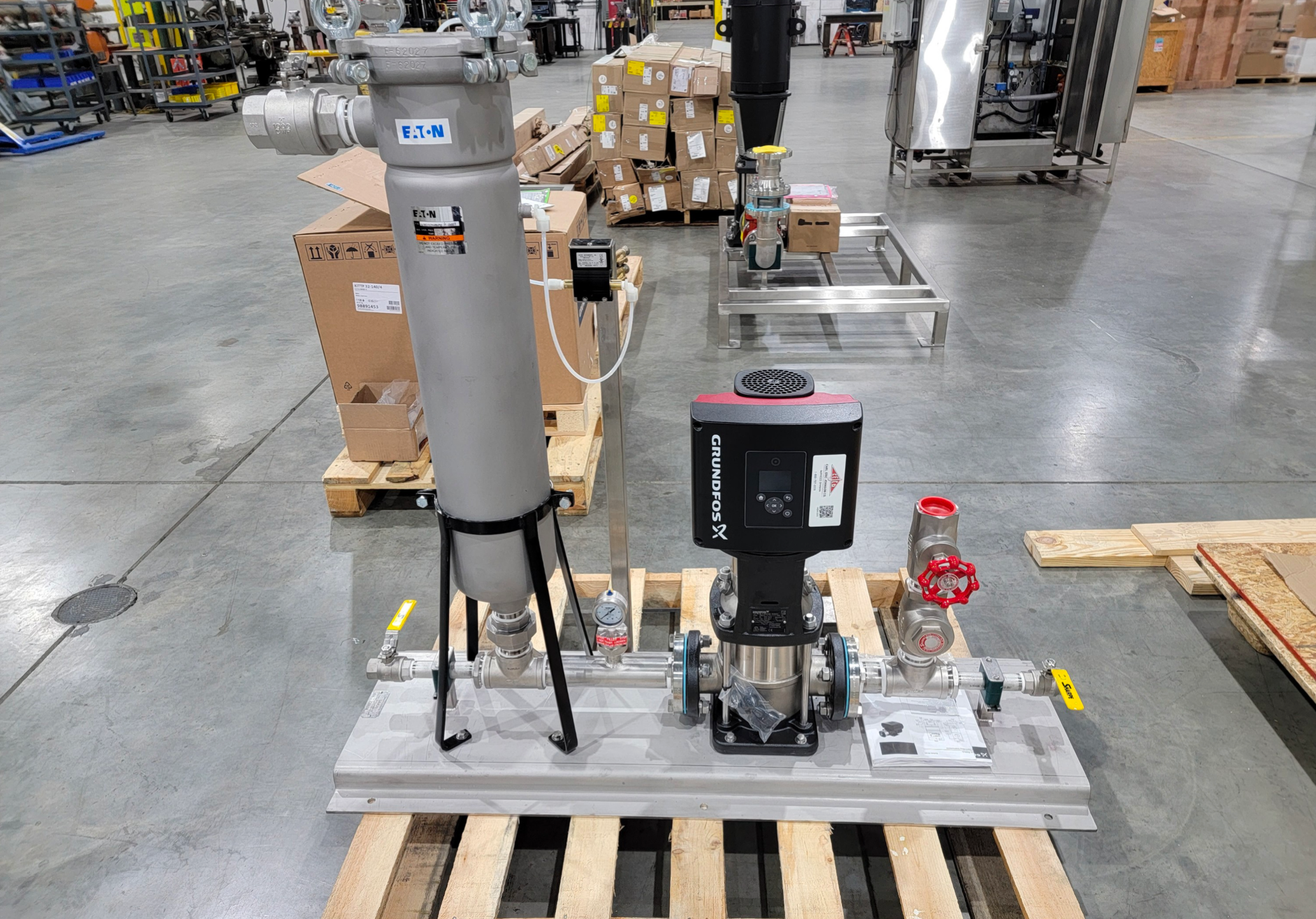

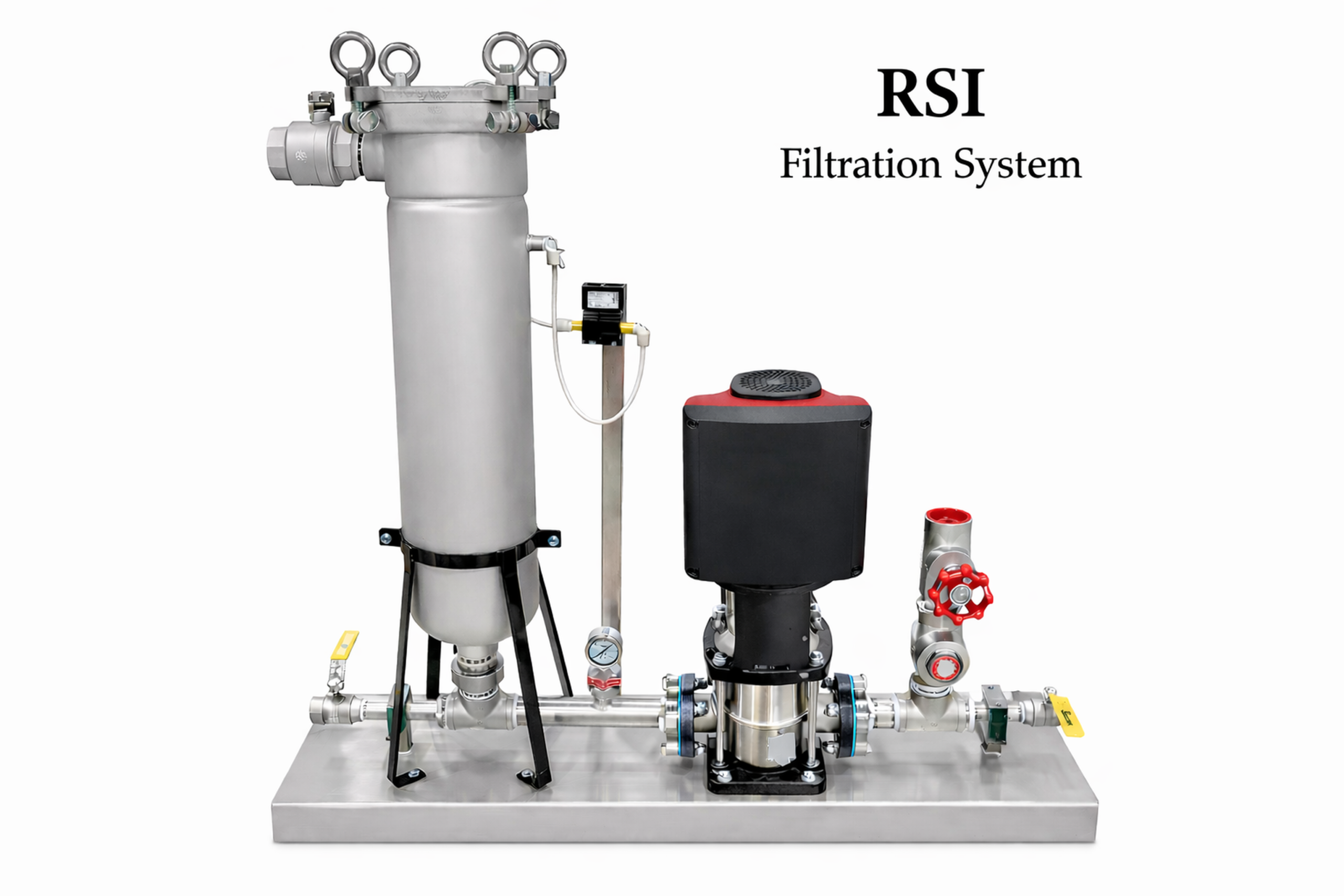

The RSI High Efficiency Filter (HEF) is a skid-mounted side stream filtration system designed for cooling tower and condenser water systems. The system combines a premium Grundfos pump and stainless-steel Eaton bag filter housing on a self-contained skid providing simple, reliable filtration without the complexity of backwash systems.
RSI HIGH EFFICIENCY FILTER
KEY BENEFITS
-
Reduced maintenance
-
Improved system efficiency
-
Longer equipment life
-
Lower operating costs
-
Simple installation and operation
ENGINEERING SPECIFICATIONS
Filtration Range: 50 micron to 1/2 micron
Housing Material: Stainless Steel
Pump: Grundfos Industrial Pump
Installation: Side Stream (∼5% system flow)
Automation: BAS output capability
| Model | Flow | Connections |
|---|---|---|
| RSI HEF-100 | 100 GPM | 2" |
| RSI HEF-150 | 150 GPM | 3" |
| RSI HEF-200 | 200 GPM | 3" |

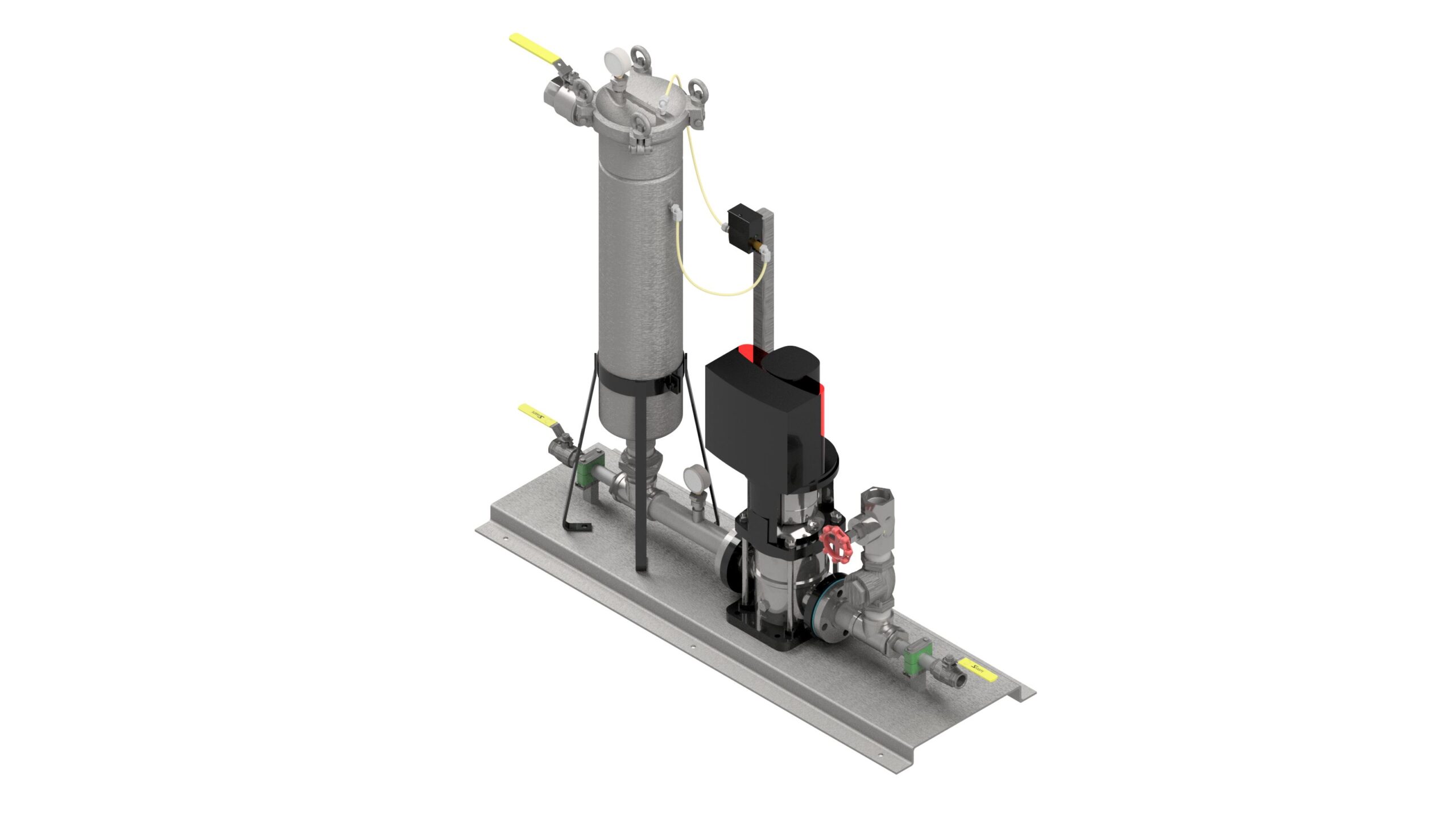

This custom-built filter can be manufactured in any size a customer needs. For placing in new applications, we can provide anything design spec engineers need in CAD for this HEF. We have professional documents , including a submittal we can provide to customers and engineers.
This high quality RSI HEF (High Efficiency Filter) makes much more sense for affordable, efficient filtration.
Call RSI today for a FREE, no obligation quote.
Make Your Life Easier™
800.488.5879
| Filtration Results | Clean Water Benefits |
|---|---|
| Cleaner heat transfer surfaces | Energy savings |
| Improved microbial treatment effectiveness | Healtheir workplace |
| Minimized potential for Legionnaires’ disease | Risk reduction |
| Reduced corrosion rates | Longer equipment life |
| Cleaner sumps, fill and heat exchangers | Less maintenance and unscheduled downtime |
Other Filter Options
Every water system has different needs when it comes to removing debris. If suspended solids are an issue in your system, RSI can help you choose the right filtration method that will get the job done and will not be overkill for your application. We have systems that can filter suspended solids out of your water from 200 microns down to 1/2 micron.
